LEDs

The CronusMAX PLUS allows you to control the LEDs on your controller if the controller supports it. Setting the LEDs is useful when you wish to create a visual indicator of an active function in your scripts.

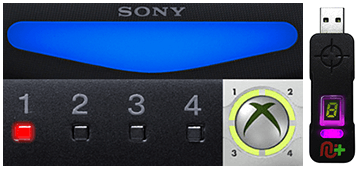

On a PS3, Wii and Xbox 360 controller, you have 4 leds which can be controlled independently although note that Xbox 360 controllers only allow one led to be lit at any time. The PS4's native controller, the DS4, has one lightbar which supports and array of colors. The Xbox One official controller does not support LED functions at this time.

Functions related to LEDs

Function Name	Description
get_led	Returns the current value of a LED state
set_led	Set the state of a LED
set_ledx	Blinks a LED a certain number of times
get_ledx	Checks if a LED is being blinked by the set_ledx function
reset_leds	Reset the LEDs state to what was set by the console

Additional Instructions in this section

Setting DS4 lightbar

LED Constants

Controllable LEDs range from 0 ~ 3. To make it easier to remember which value relates to which LED, the following Constants are available;

Name	Description	Value
LED_1	LED 1 / Xbox 360 Quadrant 1	0
LED_2	LED 2 / Xbox 360 Quadrant 2	1
LED_3	LED 3 / Xbox 360 Quadrant 3	2
LED_4	LED 4 / Xbox 360 Quadrant 4	3

get_led

get_led returns a value in the form of an int which represents the current state of the chosen LED.

The return value from this function informs you of the current state of the selected LED. The function returns a value ranging from 0 ~ 3;

Return Value	Description
0	LED Off
1	LED On
2	LED Blinking Fast
3	LED Blinking Slowly

Example of usage:

main {

if(get_led(LED_2) == 1) { // If LED 2 is On

// Do Something

}

Syntax

get_led ( <Led_Identifier> );

Parameters

<Led_Identifier> : The identifier of an LED

Returns

An int ranging from 0 ~ 3 which represents the current state

Top

set_led

set_led sets the state of an LED on the controller. When an led state is set, it remains set until such time as the LEDs are reset, it is set again in your GPC script or the script is unloaded.

An LED can be set to one of four states using this function which range from 0 ~ 3, as shown in the table below;

Value	Description
0	LED Off
1	LED On
2	LED Blink Fast
3	LED Blink Slowly

Example of usage:

set_led(LED_1, 3); // Make LED 1 blink slowly

Syntax

set_led ( <led_identifier> , <state> );

Parameters

<led_identifier> : the identifier of an LED

<state> : Numeric value which represents the state, as shown in the table above

Top

set_ledx

set_ledx is used to Blink and LED a set amount of times. You can blink an led from 0 to 255 times. 0 sets the LED to on.

Example of usage:

main {

if(!get_ledx()) { // If the leds are not blinking...

set_led(LED_1, 10); // Blink LED 1 10 times

}

Syntax

set_ledx ( <led_identifier> , <no_of_blinks> );

Parameters

<led_identifier> : the identifier of an LED

<no_of_blinks> : The number of times to blink the LED

Top

get_ledx

get_ledx checks to see if an LED is currently being blinked by the set_ledx function.

Example of usage:

main {

if(get_ledx()) { // If the leds are blinking...

// Do Something

}

Syntax

get_ledx ( );

Parameters

None

Returns

TRUE is the LEDs are being blinked by the set_ledx function, FALSE if they are not

Top

reset_leds

reset_leds returns control of the LEDs to the console and disables any current LED states which are being set by the Virtual Machine.

Example of usage:

main {

if(event_press(XB1_A)) { // If A / Cross is Pressed...

reset_leds(); // Reset Leds

}

Syntax

reset_leds ( );

Parameters

None

Top

Setting DS4 lightbar

The Dualshock 4 controller has one lightbar instead of four LEDs. The color of the lightbar can be controlled by setting all four led states simultaneously.

For example, the following code will set the lightbar to green;

main {

if(event_press(PS4_CROSS)) {

set_led(LED_1, 0);

set_led(LED_2, 0);

set_led(LED_3, 2);

set_led(LED_4, 0);

}

To save you from remembering all the different combinations, we have created this script which simplifies the task of setting the color with a custom function. You can add your own code to this and use the function to create visual notifications in your GPC script;

// Dualshock 4 lightbar custom function

//

// Written by the CronusMAX Team

//

// For the CronusMAX PLUS manual www.cronusmax.com/manual_old/leds.htm#id_6

define Off = 0;

define Dim_Blue = 1;

define Dim_Red = 2;

define Dim_Green = 3;

define Dim_Pink = 4;

define Dim_SkyBlue = 5;

define Dim_Yellow = 6;

define Dim_White = 7;

define Blue = 8;

define Red = 9;

define Green = 10;

define Pink = 11;

define SkyBlue = 12;

define Yellow = 13;

define White = 14;

define Bright_Blue = 15;

define Bright_Red = 16;

define Bright_Green = 17;

define Bright_Pink = 18;

define Bright_SkyBlue = 19;

define Bright_Yellow = 20;

define Bright_White = 21;

data (

0,0,0,0, // Off

1,0,0,0, // Dim Blue

0,1,0,0, // Dim Red

0,0,1,0, // Dim Green

0,0,0,1, // Dim Pink

1,0,1,0, // Dim SkyBlue

0,1,1,0, // Dim Yellow

1,1,1,1, // Dim White

2,0,0,0, // Blue

0,2,0,0, // Red

0,0,2,0, // Green

0,0,0,2, // Pink

2,0,2,0, // SkyBlue

0,2,2,0, // Yellow

2,2,2,2, // White

3,0,0,0, // Bright Blue

0,3,0,0, // Bright Red

0,0,3,0, // Bright Green

0,0,0,3, // Bright Pink

3,0,3,0, // Bright SkyBlue

0,3,3,0, // Bright Yellow

3,3,3,3 // Bright white

);

main {

//Examples of usage

if(event_press(PS4_CROSS)) { // If Cross is pressed...

set_ds4_led(Green); // Set the lightbar to Green

}

if(event_press(PS4_CIRCLE)) { // If Circle is pressed...

set_ds4_led(Red); // Set the lightbar to Red

}

if(event_press(PS4_OPTIONS)) { // If Options is pressed...

reset_leds(): // Reset the LEDs

}

function set_ds4_led(colour) {

set_led(LED_1, dbyte(colour * 4));

set_led(LED_2, dbyte((colour * 4) + 1));

set_led(LED_3, dbyte((colour * 4) + 2));

set_led(LED_4, dbyte((colour * 4) + 3));

}

Top
