Connecting to a PS3

Using a Wired DualShock 3 Controller


Using a Wired DualShock 3 Controller

1
Set Output Protocol


Follow the instructions here to correctly connect your CronusMAX PLUS to a PC via the PC PROG port using the supplied Mini-USB Cable.

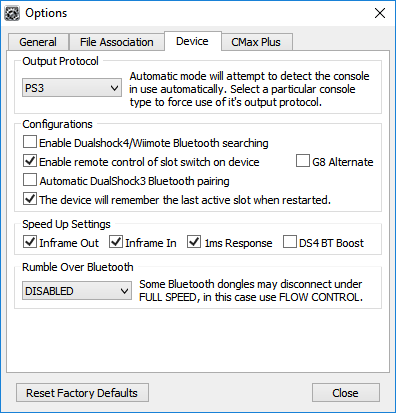

Load Cronus PRO and go to Tools > Options > Device


Set the Output Protocol to PS3.

These are also the recommended default Speed Up Settings for Wired DualShock 3 Controllers (including a DS3 Wireless Controller with a Mini USB Cable). Rumble Over Bluetooth is disabled as it's not being used.

You can now close the Options window and disconnect your CronusMAX PLUS from the PC.

2
Connect the CronusMAX PLUS to your PS3


Connect the CronusMAX PLUS into one of your PlayStation 3 USB ports via it's Output Port.



The CronusMAX PLUS LED Display will now show the spinning Standby animation.

3
Connect your DualShock 3 Controller to the CronusMAX


Using a full data Mini-USB Cable, connect your DualShock 3 Controller into the Input Port of the CronusMAX PLUS.

4
Ready to Use


After a couple of seconds the display on the CronusMAX LED will go from the spinning Standby Animation to 0 (or a number if slot recall is enabled and a script was previously loaded) - indicating that the controllers are authorized and you're ready to play. At this point you can use your controller through the CronusMAX PLUS and also load any scripts or GamePacks. It's that simple!
