Compiler

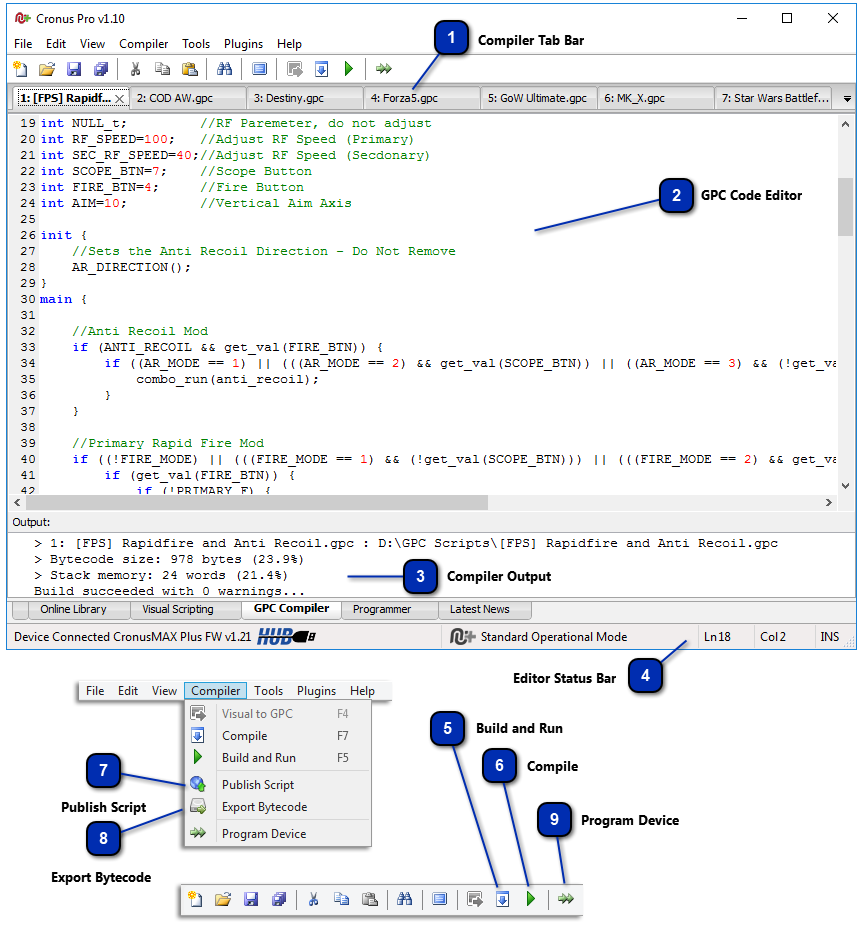

The compiler tab bar allows you to select between different opened GPC scripts. The first 9 GPC scripts in the tab bar receive a number, which correspond to the memory slot that the script will be stored in the CronusMAX PLUS when running the command "Program Device". You can rearrange the order of GPC scripts in the tab bar by drag and drop. When you make changes in the source code an asterisk (*) will be displayed in the tab title, indicating the file has not been saved yet.

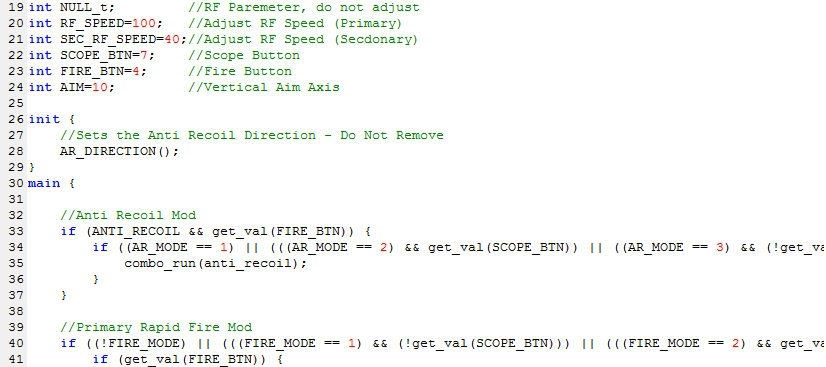

The compiler editor is designed to edit GPC source code files, allowing text formatting, search and real-time syntax highlight. Highlighting ensures that the code elements are displayed in different colors based on the GPC language syntax, this greatly improves the readability of the code and makes it easier to spot and avoid mistakes.

The compiler output area shows the compilation result of the active GPC source code. The compilation process can be started in many ways, from the usual Compile command, passing through the "Build and Run", "Program Device" and others commands, up to a request from a plugin. Regardless of how the compilation process was started, the results will always be displayed in the output area.



The results of a compilation process consist of: warnings and errors messages, the size of bytecode and the amount of stack memory used by static variables and combos. Inside the parentheses you can find the percentage used of the maximum allowed. Keep in mind that warning messages are also a kind of error. For example writing a value out of range into a variable may cause unexpected behaviors and be very hard to debug. It is highly advisable find and fix all warning problems.

The status bar shows additional information about the currently active GPC script editor. The first two sections are the current line (Ln, first line is line 1) and the current column (Col, first position is 1). The last section shows the current overtype status. INS means insertion and OVR means overtype. Pressing the Insert key of your keyboard switches between insertion and overtype typing mode, the displayed cursor will change its shape accordingly

The compile command, as its name implies, compiles the active GPC source code. It is primarily used to verify if the script has lexical or syntactical errors and warnings. The compile command can also be executed by the shortcut key F7.

The command "Build and Run" (shortcut key F5) compiles the active GPC source code and loads it directly into the CronusMAX RAM. The GPC VM will automatically run the loaded code, so you can test your script on-the-fly and check all the inputs and outputs using the Device Monitor. You can set a configuration to automatically open the Device Monitor in the Cronus PRO Options.





The CRONUSMAX LED display will change to a two bar sign, indicating a script was loaded by the "Build and Run" command.





This command is only available when the CronusMAX PLUS is connected to your computer via the PCPROG side port with a mini-USB cable.

You can share your GPC script with the CronusMAX community by publishing it to our database. But before publishing your script, make sure you have tested it and it runs without any errors. Click on the "Publish Script" command to open the publishing form in your default browser. Please fill all required fields correctly before submit it. A published script will be available for download in the Online Library of the Cronus Program. You must have an account registered with the Cronus Community to be able to do this - don't worry it's completely free to CronusMAX owners, click here to register.



The bytecode of a GPC script can be exported to a file. This feature is used by the CronusMAX PLUS development team to publish GamePacks and currently does not have a real application for end users (Unless you would like to code your own GamePack and submit it to use for inclusion into the system).

You can store up to 9 GPC scripts into memory slots of the CronusMAX PLUS, thus you can access your favorite scripts without requiring a PC connected to your CronusMAX PLUS and console. The first 9 GPC scripts in the compiler's tab bar get a number which correspond to the memory slot in which it will be stored. The order of the scripts in the tab bar can be changed via drag and drop.

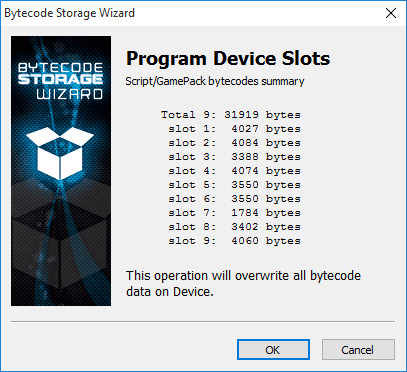

The command "Program Device" will compile these scripts, any compilation errors will abort the operation. The produced bytecode is saved into a special structure and a wizard window will open to guide you through the device programming process, as show in the next picture.





After the programming process you can run your script by selecting the correspondent slot number in your CronusMAX PLUS. At this point you don't need to have your device connected to your PC anymore (unless you are using any of the Plugins such as X-AIM of course)



The CronusMAX PLUS LED Display will show the currently active slot number.
